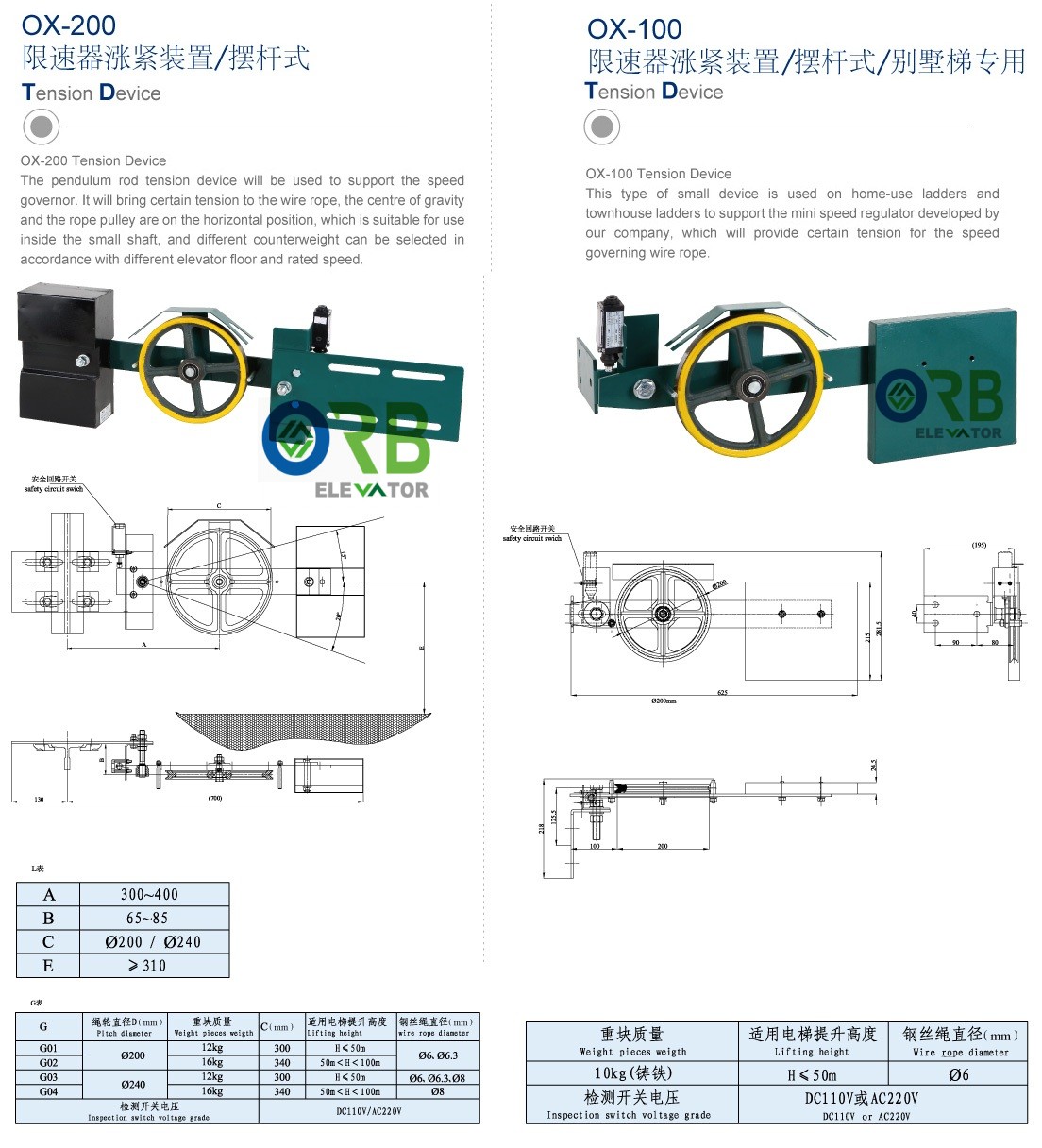

Tension Device OX-100

This type of small device is used on home-use ladders and townhouse ladders to support the mini speed regulator developed by our company, which will provide certain tension for the speed governing wire rope.

Weight pieces weight:10kg

Lifting height: H≤50m

Wire rope diameter (mm): Φ6

Inspection switch voltage grade:DC110V/AC220V

Tension device OX-200

The pendulum rod tension device will be used to support the speed governor. It will bring certain tension to the wire rope, the centre of gravity and the rope pulley are on the horizontal position, which is suitable foe use inside the small shaft, and different counterweight can be selected in accordance with difference elevator floor and rated speed.

Graph L:

A: 300~400

B: 65~85

C: Φ200/Φ240

E:≥310

Graph G:

G01:

Sheave diameter (mm): Φ200

Weight pieces weight: 12kg

C(mm):300

Lifting height: H≤50m

Wire rope diameter: Φ6, Φ6.3

G02:

Sheave diameter (mm): Φ200

Weight pieces weight: 16kg

C(mm):340

Lifting height: 50m＜H＜100m

Wire rope diameter: Φ6, Φ6.3

G03

Sheave diameter (mm): Φ240

Weight pieces weight: 12kg

C(mm):300

Lifting height: H≤50m

Wire rope diameter: Φ6, Φ6.3, Φ8

G04:

Sheave diameter (mm): Φ240

Weight pieces weight: 16kg

C(mm):340

Lifting height: 50m＜H＜100m

Wire rope diameter: Φ8

Inspection switch voltage grade:DC110V/AC220V
