Square Wire
Product Name:
Square WireModel No.:
BV BVR PVCMinimum Order:
1
Product Abstract:

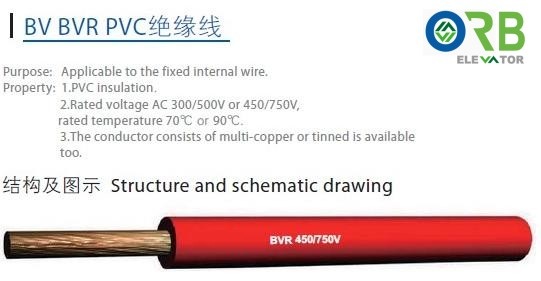

Square wire, round cable, flat cable
- Product Description
More information, please contact us, orbeli_peter@163.com
Purpose: Applicable to the fixed internal wire
Property:1.PVC insulation.
2.Rated voltage AC 300/500V,rated temperature 70°C or 90°C.
3.The conductor consists of single or multicopper silk or tinned is available too.4.With CE,CCC,ROHS UL certification.
Type
Conductor Section(mm2)
Conductor
Construction(mm2)Dia.(mm)
70°C(MΩ/KM)
20°C(Ω/KM)
60227IEC05(BV)
0.5 1/0.8
2.3
≥0.015
≤36
60227IEC05(BV)
0.75 1/0.98
2.5 ≥0.012
≤24.5
60227IEC05(BV)
1.0 1/1.13
2.7 ≥0.011
≤18.1
60227IEC07(BV-90)
0.5 1/0.8
2.3
≥0.015
≤36
60227IEC07(BV-90)
2.5
1/1.78
3.9 ≥0.012
≤7.41
