Square Wire

  • Square Wire
  • Square Wire
  • Round cable
  • Flat cable
  • Flat cable
  • Flat Cable clamp
  • Product Name:

    Square Wire
  • Model No.:

    227 IEC
  • Minimum Order:

    1

Product Abstract:

Square wire, round cable, flat cable


Product Description



More information, please contact us, orbeli_peter@163.com

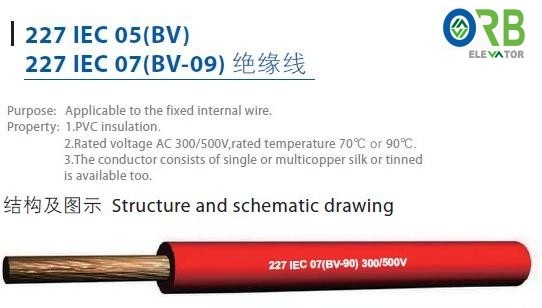

Purpose: Applicable to the fixed internal wire
Property:

1.PVC insulation.
2.Rated voltage AC 300/500V,rated temperature 70°C or 90°C.
3.The conductor consists of single or multicopper silk or tinned is available too.

4.With CE,CCC,ROHS UL certification.



Type



Conductor Section(mm2)

Conductor
Construction(mm2)

Dia.(mm)

 70°C(MΩ/KM)

20°C(Ω/KM)

60227IEC05(BV)

0.5

 1/0.8

2.3

 ≥0.015

 ≤36

60227IEC05(BV)

0.75

1/0.98

2.5

 ≥0.012

 ≤24.5

60227IEC05(BV)

1.0

 1/1.13

2.7

 ≥0.011

 ≤18.1

60227IEC07(BV-90)

0.5

 1/0.8

2.3

 ≥0.015

 ≤36

60227IEC07(BV-90)

2.5

 1/1.78

3.9

 ≥0.012

 ≤7.41
