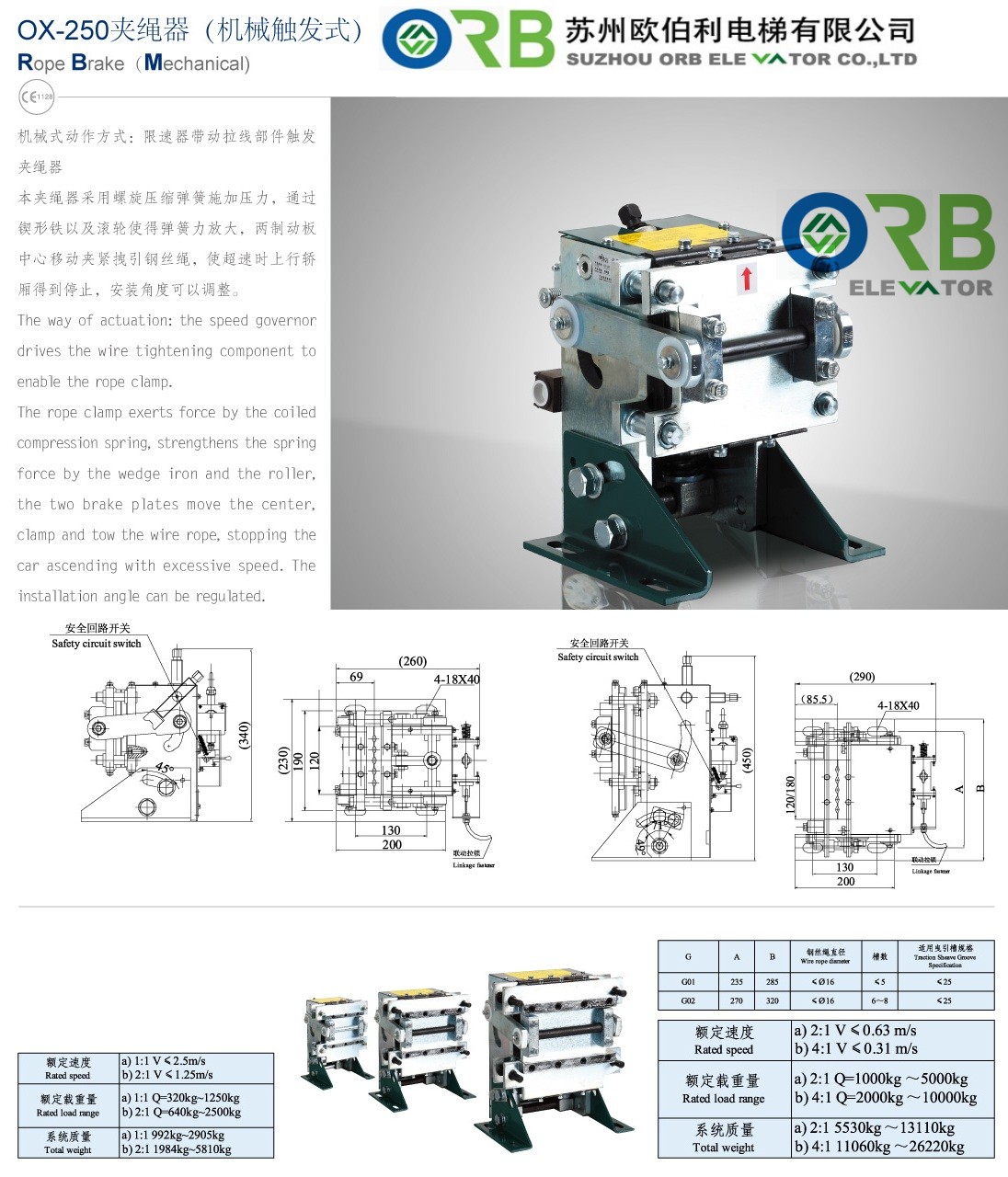

Rope Brake (Mechanical) OX-250

The way of actuation: the speed governor drives the wire tightening component to enable the rope clamp.

The rope clamp exerts force by the coiled compression spring, strengthens the spring force by the wedge iron and the roller, the two brake plates move the center, clamp and tow the wire rope, stopping the car ascending with excessive speed. The installation angle can be regulated.

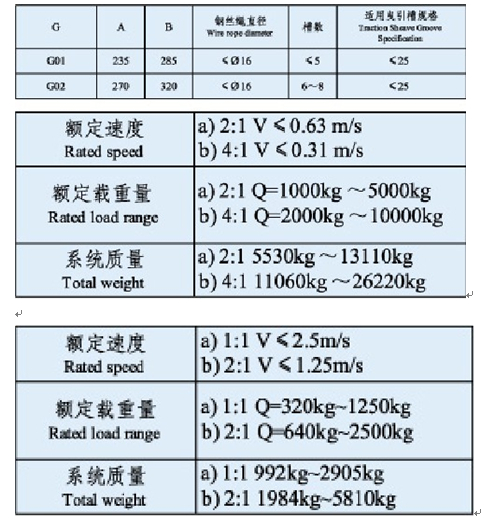

Traction sheave groove
