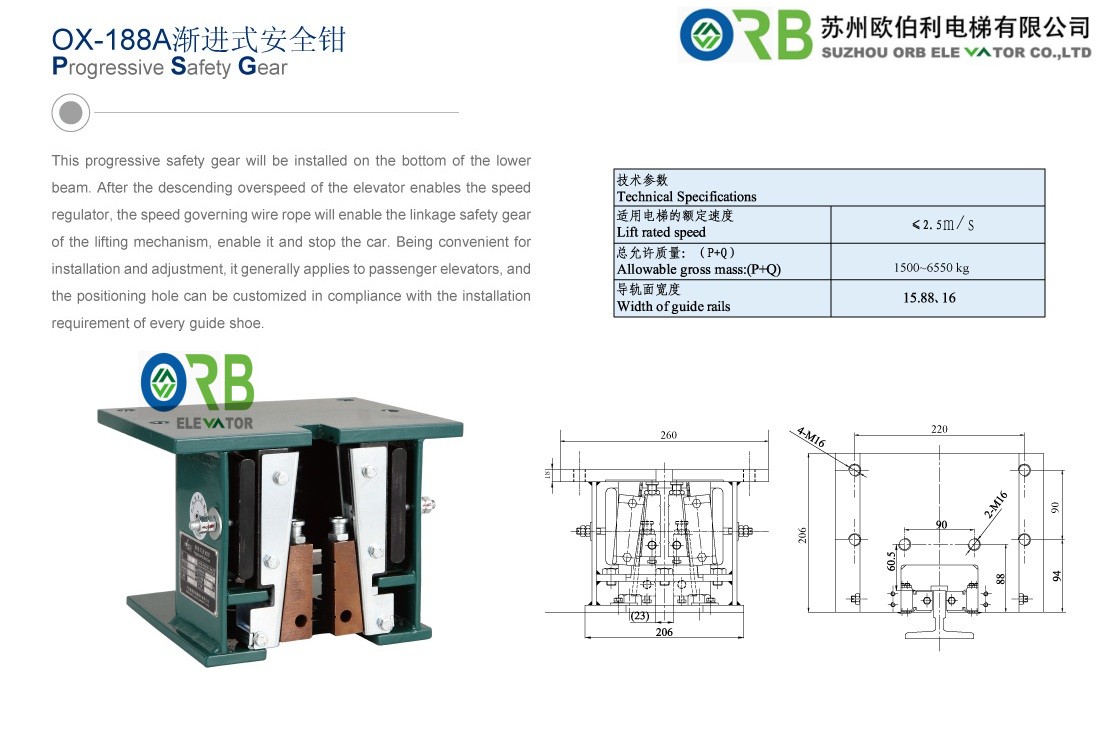

Pogressive Safety Gear, OX-188A

The progressive safety gear will be installed on the bottom of the lower beam. After the descending over-speed of the elevator enables the speed regulator, the speed governing wire rope will enable the linkage safety gear of the lifting mechanism, enable it and stop the car. Being convenient for installation and adjustment, it generally applies to passenger elevators, and the positioning hole can be customized in compliance with the installation requirement of every guide shoe.

Technical Specifications:

Lift rated speed:≤2.5m/s

Allowable gross mass: (P+Q) 1500~6550kg

Width of guide rails: 15.88,16mm

More information, please contact us, orbeli_peter@163.com
