Machined guide rail
Product Name:
Machined guide railModel No.:
ALLMinimum Order:
1
Product Abstract:
T70-1/B; T78/B;T75-3/B;T89/B;T90/B;T114/B; T127-2/B;
- Product Description
Elevator Guide Rail,elevator parts
1.Machined guide rail
2.Cold drawn guide rail
3.Hollow guide rail
4.special guide rail
Elevator Guide Rail
Cold drawn guide rail fishplates, machined guide rail fishplates, special thicness fishplates,
T section fishplates, forged clips,sliding clamps, sliding clips, T-clips

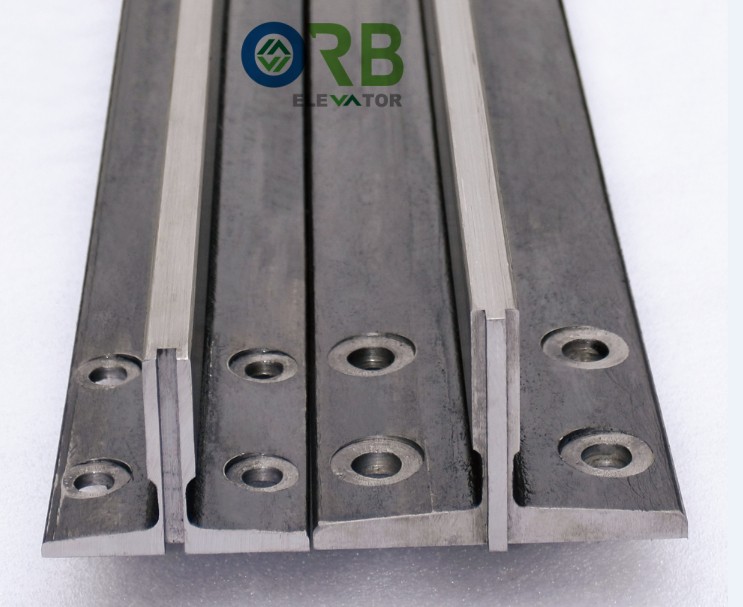

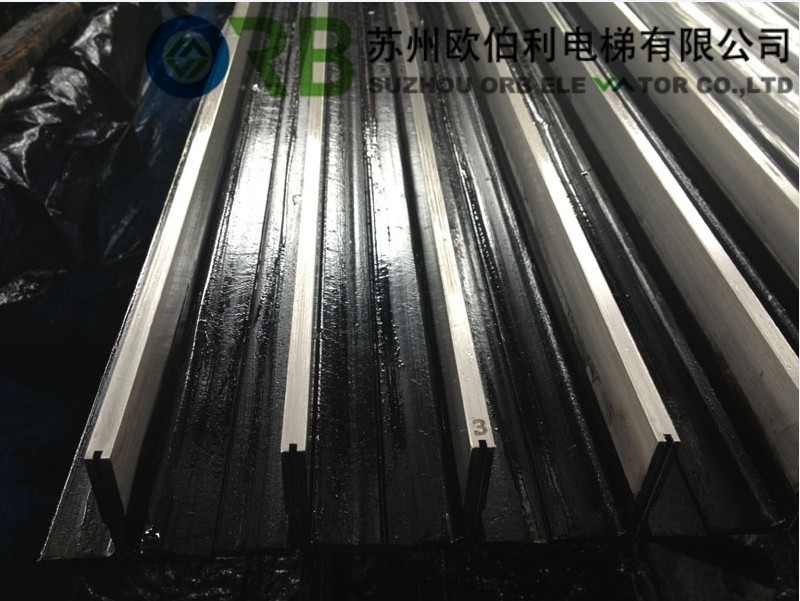

Machined Elevator guide rail
standard: ISO 7465.
products: T70-1/B,T75,T78,T82,T89,T90,T114,T127,T45,T50.simple display of information of elevator guide rails T70-1/B
1.processing methods: machining
2. packing:

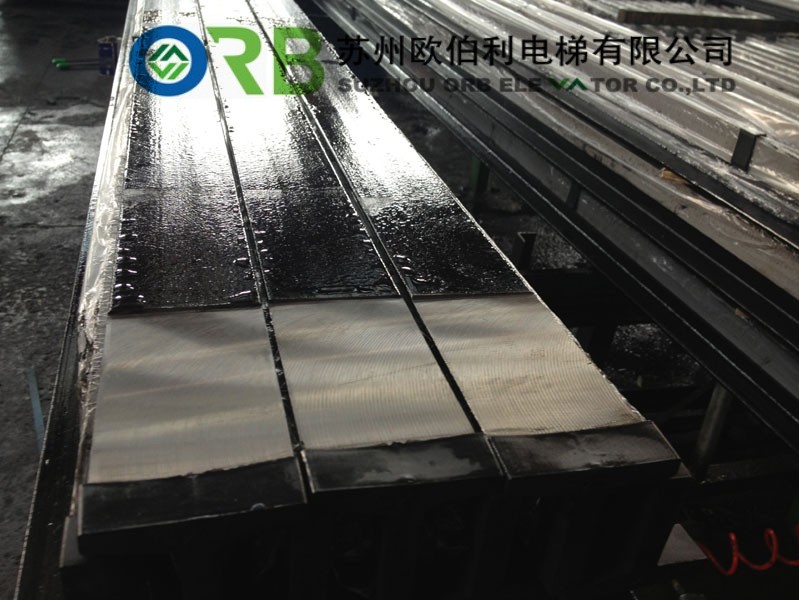

Our standard packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting.
If you request, we can also pack at your request.

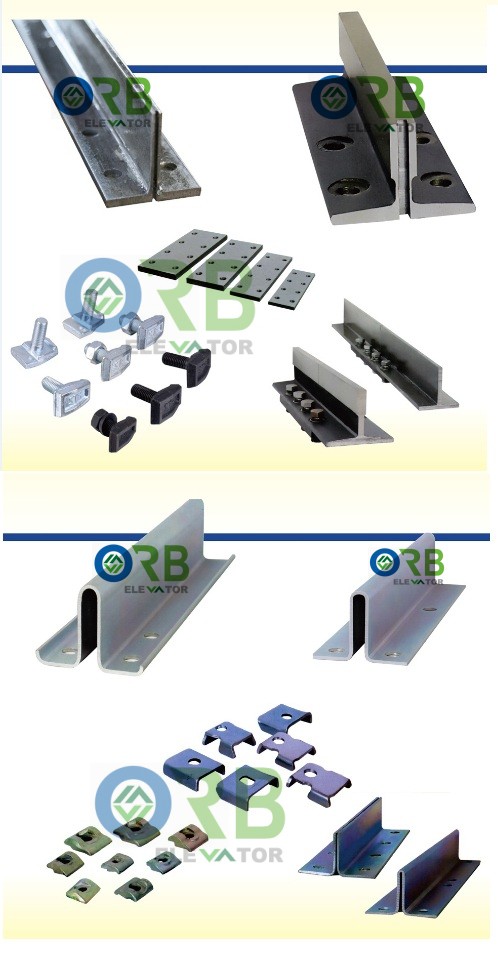

Elevator Guide Rail and Accessories:
basic dimensions of elevator guide rails and their accessories
Item code
guide rail
fishplate
clip
screw
T45/A
45mm*45mm*5mm
160*50*8mm
8k
M8*25
T50/A
50mm*50mm*5mm
200*50*8mm
8k
M8*25
TK3
75mm*55mm*10mm
220*72*2.5mm
3k
M8*25
TK3A
78mm*60mm*16.4mm
200*78*4mm
3k
M8*25
TK5
87mm*60mm*16.4mm
350*87*4mm
5k
M10*25
TK5A
78mm*60mm*16.4mm
200*78*4mm
5k
M10*25
T70-1/B
70mm*65mm*9mm
250*70*10mm
8k
M12*35
T75-3/B
75mm*62mm*10mm
240*75*10mm
8k
M12*35
T78/B
78mm*56mm*10mm
240*75*10mm
8k
M12*35
T82/B
82.5mm*68.25mm*9mm
216*80*10mm
13k
M12*35
T89/B
89mm*62mm*16mm
305*90*13mm
13k
M12*40
T90/B
90mm*75mm*16mm
305*90*13mm
13k
M12*40
T114/B
114mm*89mm*16mm
305*120*18mm
18k
M16*50
T127-2/B
127mm*89mm*16mm
305*130*18mm
24k
M16*55
