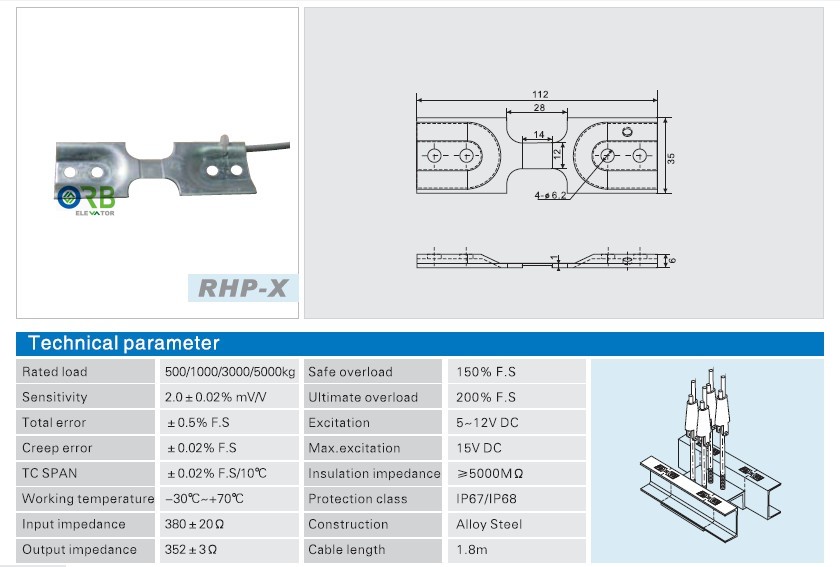

Load sensor (RHP-X)
Product Name:
Load sensor (RHP-X)Model No.:
RHP-XMinimum Order:
1
Product Abstract:
1.Zero load,heavy load,overload; 2.Range, 0~5000kg; 3.Housing:Alloy steel; 4.Protection:IP67/IP68
- Product Description
Elevator load sensor
Technical parameter Power supply voltage AC/DC 16V~65V Analog output optional power rating ≤4W Galvanically isolated enable Alarm relays 3 output voltage(load>500Ω) 0~10V,-10~10V Max. switching voltage 250VAC output current(load<500Ω) disable Max. peak current 5A measuring channel 2 Rated current 3A Bandwidth 30HZ Rated load(resistive) in AC1 800VA Sampling rate 100HZ Rated load(resistive) in AC15 200VA Floor compensation enable More information, please contact us, orbeli_peter@163.com
