Load sensor (RHP-H)
Product Name:
Load sensor (RHP-H)Model No.:
RHP-HMinimum Order:
1
Product Abstract:
1.Zero load,heavy load,overload; 2.Range, 0~5000kg; 3.Housing:Alloy steel; 4.Protection:IP67/IP68
- Product Description

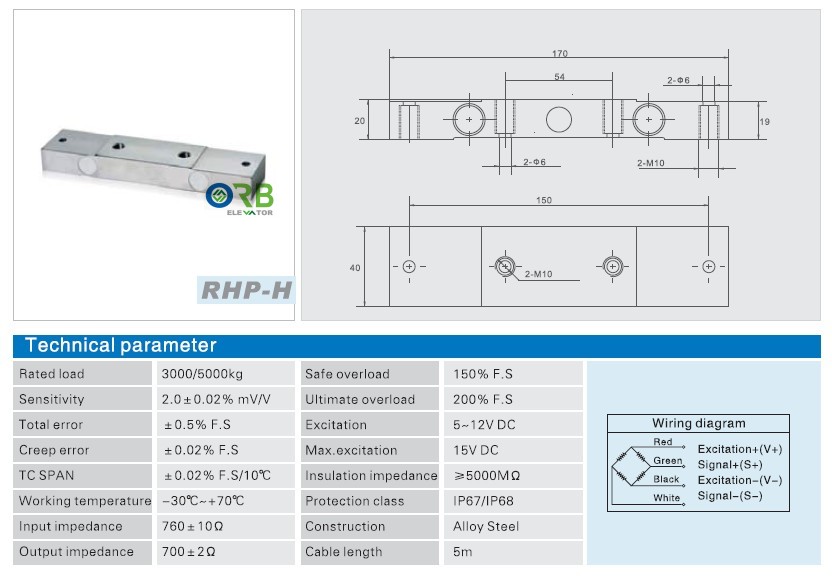

Elevator load sensor
Type:RHP-H
Technical parameter
Capacity
3000/5000kg
Input resistance
760±10Ω
Rated output
2.0±0.02% mV/V
Output resistance
700±2Ω
Total error
±0.5%F.S
Insulation impedance
≥5000MΩ
Repeatability
±0.1%F.S
Safe overload
150%F.S
Creep(30min)
±0.05%F.S/30min
Ultimate overload
200%F.S
Zero balance
±1%F.S
Construction
Alloy steel
TC SPAN
±0.02%F.S/10°C
Protection class
IP65
Operating Temp.
(-30~+70)°C
Citation
GB/T7551-1997/ OIML R60
More information, please contact us, orbeli_peter@163.com
