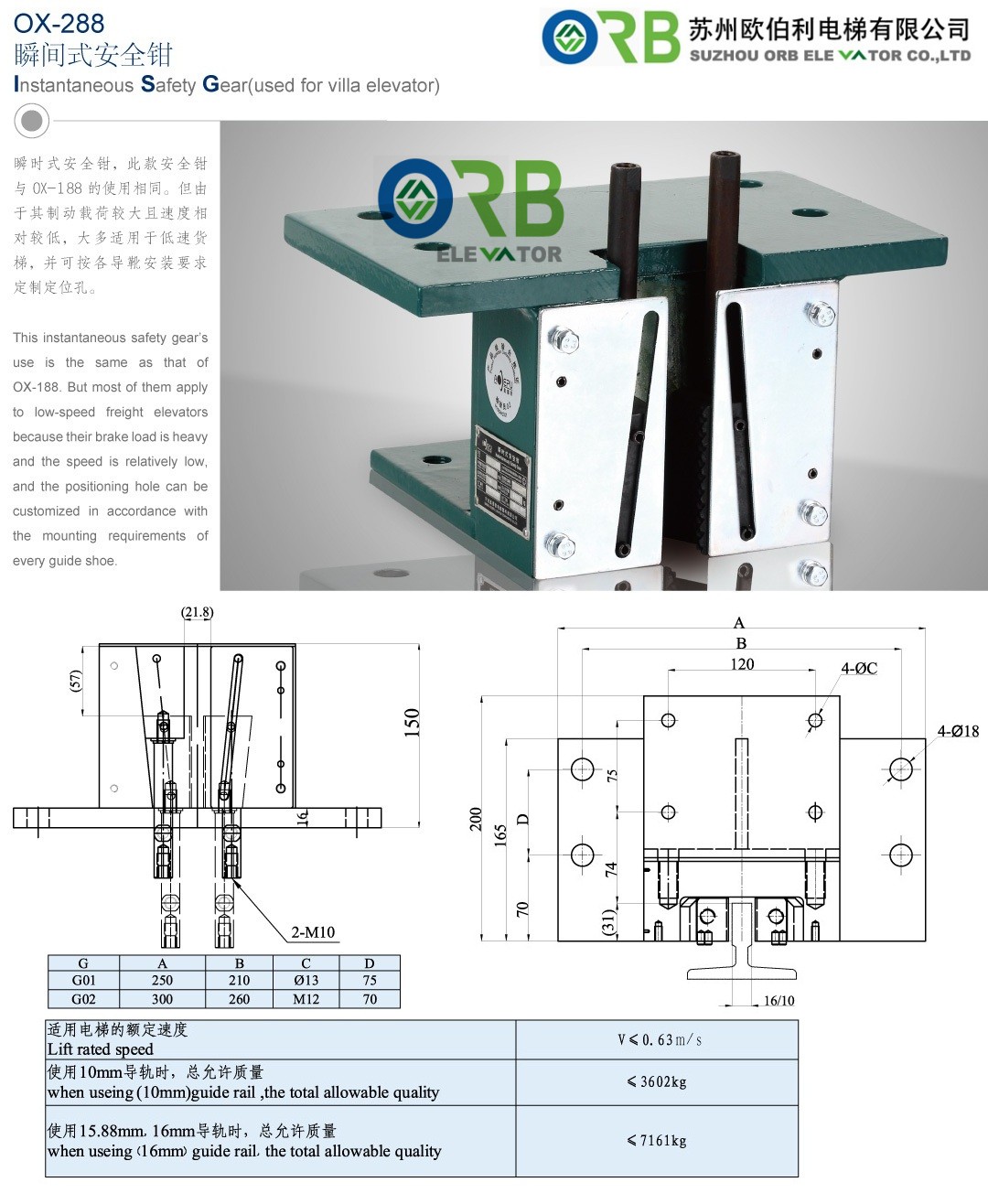

Instantaneous Safety Gear (used for villa elevator) OX-288

This instantaneous safety gear’s use is the same as that of OX-188. But most of them apply to low-speed freight elevators because their brake load is heavy and the positioning hole can be customized in accordance with the mounting requirements of every guide shoe.

G01:

A: 250

B: 210

C: Φ13

D: 75

G02:

A: 300

B: 260

C: M12

D: 70

Lift rated speed: v ≤ 0.63m/s

When using(10mm) guide rail, the total allowable quality:≤3602kg

When using (16mm) guide rail, the total allowable quality: ≤7161kg
