Product Abstract:

TK3&TK5&TK5A


Product Description

Elevator Guide Rail,elevator parts
1.Machined guide rail
2.Cold drawn guide rail
3.Hollow guide rail
4.special guide rail

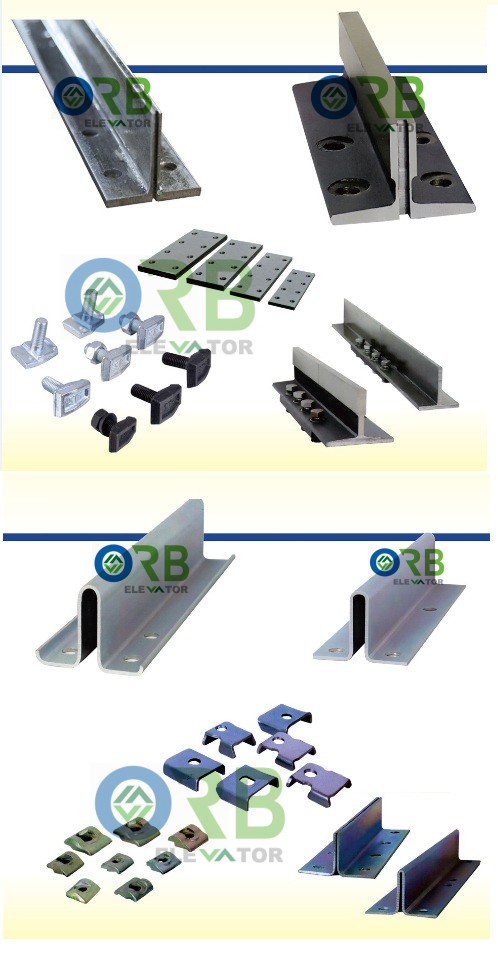

Elevator Guide Rail



Cold drawn guide rail fishplates, machined guide rail fishplates, special thicness fishplates,

T section fishplates, forged clips,sliding clamps, sliding clips, T-clips

Machined Elevator guide rail



standard: ISO 7465.
products: T70-1/B,T75,T78,T82,T89,T90,T114,T127,T45,T50.

simple display of information of elevator guide rails T70-1/B

1.processing methods: machining

2. packing:

Our standard packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting.

If you request, we can also pack at your request.



Elevator Guide Rail and Accessories:

basic dimensions of elevator guide rails and their accessories

Item code

guide rail

fishplate

clip

screw

T45/A

45mm*45mm*5mm

160*50*8mm

8k

M8*25

T50/A

50mm*50mm*5mm

200*50*8mm

8k

M8*25

TK3

75mm*55mm*10mm

220*72*2.5mm

3k

M8*25

TK3A

78mm*60mm*16mm

200*78*4mm

3k

M8*25

TK5

87mm*60mm*16mm

350*87*4mm

5k

M10*25

TK5A

78mm*60mm*16mm

200*78*4mm

5k

M10*25

T70-1/B

70mm*65mm*9mm

250*70*10mm

8k

M12*35

T75-3/B

75mm*62mm*10mm

240*75*10mm

8k

M12*35

T78/B

78mm*56mm*10mm

240*75*10mm

8k

M12*35

T82/B

82.5mm*68.25mm*9mm

216*80*10mm

13k

M12*35

T89/B

89mm*62mm*16mm

305*90*13mm

13k

M12*40

T90/B

90mm*75mm*16mm

305*90*13mm

13k

M12*40

T114/B

114mm*89mm*16mm

305*120*18mm

18k

M16*50

T127-2/B

127mm*89mm*16mm

305*130*18mm

24k

M16*55
