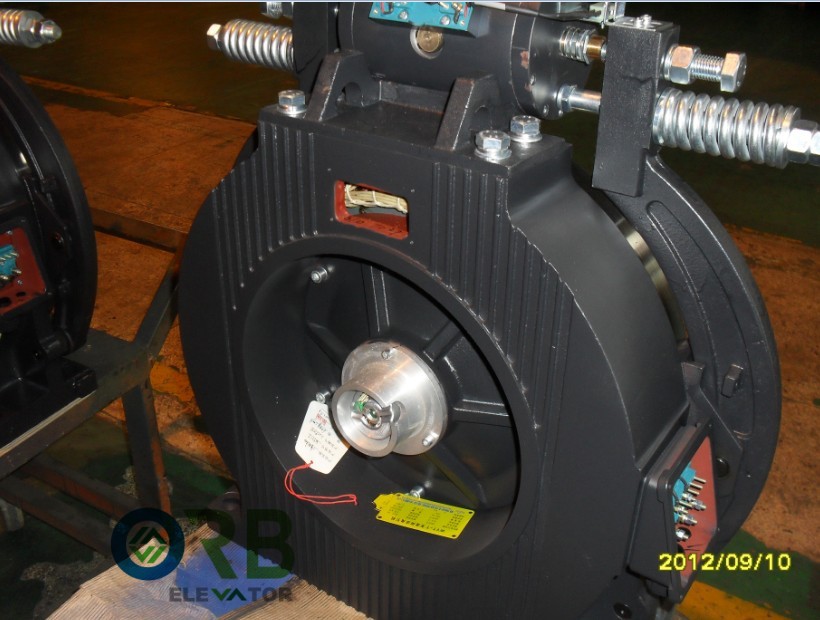

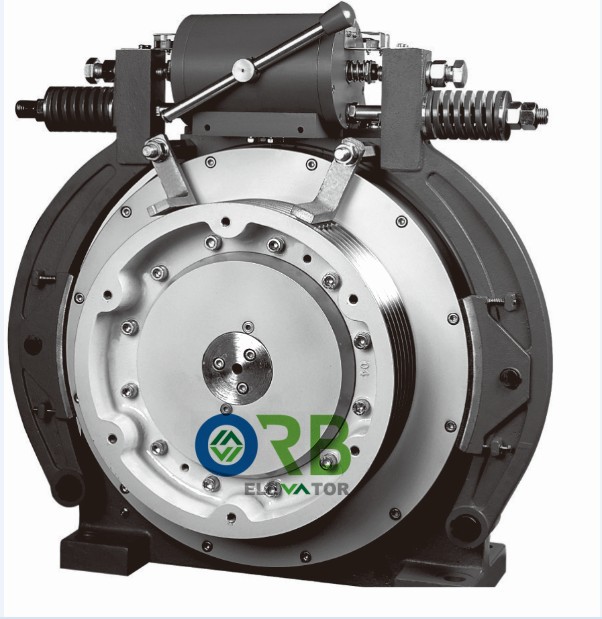

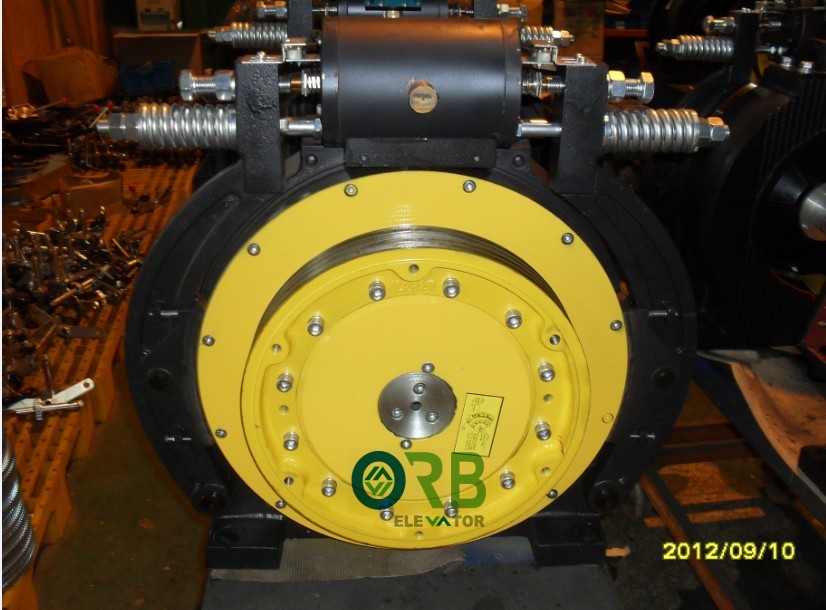

Introduction about WYJ103-02 Series Traction Machine

Power supply: 3-phase VAC input inverter

Suspension ratio:2:1

Load capacity: 630-1000kg

Speed:1.0-2.5m/s

Sheave Diameter: Φ400mm

Brake Voltage: 198VDCopen、99VDC maintain or 99VDC open、499VDC maintain

Traction machine is the main pulling tool that can drive the cabin of the elevator and make the heavy equipment up and down.
Traction machine is composed of electric motor, brake staff, reducer, and traction sheave and so on.
Traction machine's characteristics: low noise, low rising temperature, high efficiency, high output torque, low maintenance cost and smooth operation and so on, it's especially suitable for elevators with small machine room or without machine room.
