Product Abstract:

1.Zero load,heavy load,overload; 2.Range, 0~5000kg; 3.Housing:Alloy steel; 4.Protection:IP67/IP68


Product Description

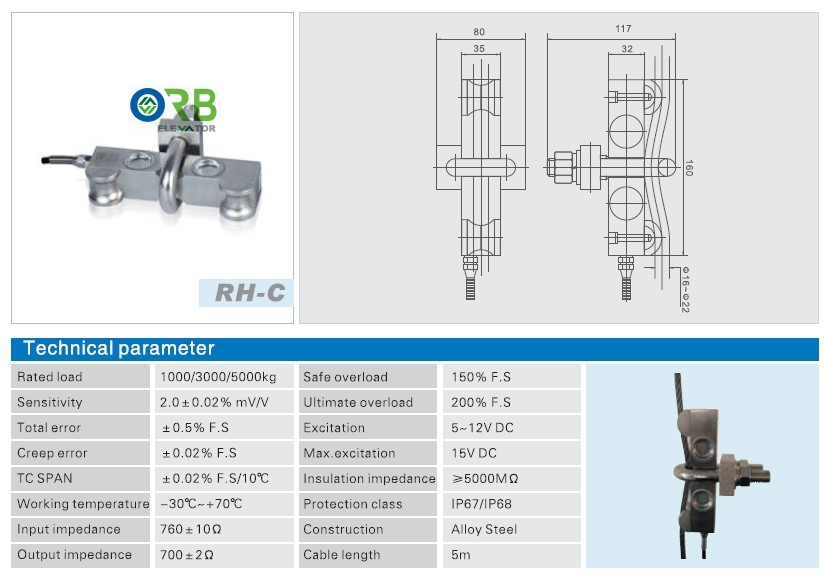

Elevator load sensor





Technical parameter

Capacity

1000/3000/5000kg

Input resistance

760±10Ω

Rated output

2.0±0.02% mV/V

Output resistance

700±2Ω

Total error

±0.5%F.S

Insulation impedance

≥5000MΩ

Repeatability

±0.1%F.S

Safe overload

150%F.S

Creep(30min)

±0.05%F.S/30min

Ultimate overload

200%F.S

Zero balance

±1%F.S

Construction

Alloy steel

TC SPAN

±0.02%F.S/10°C

Protection class

IP67/IP68

Operating Temp.

(-30~+70)°C

Citation

GB/T7551-1997/ OIML R60
