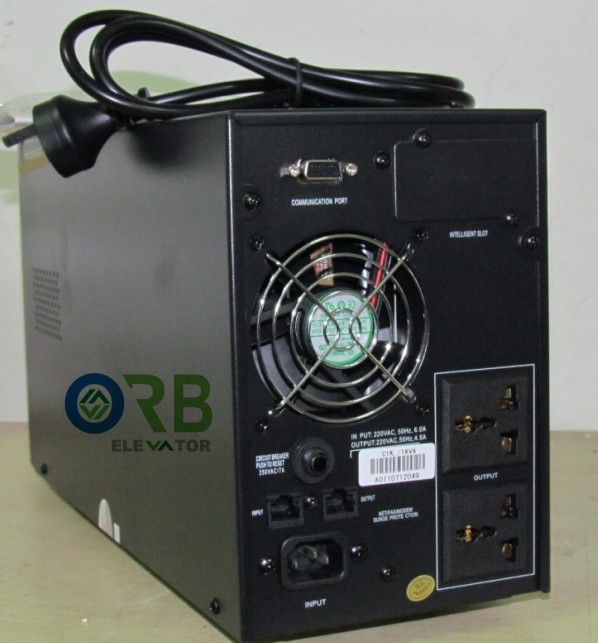

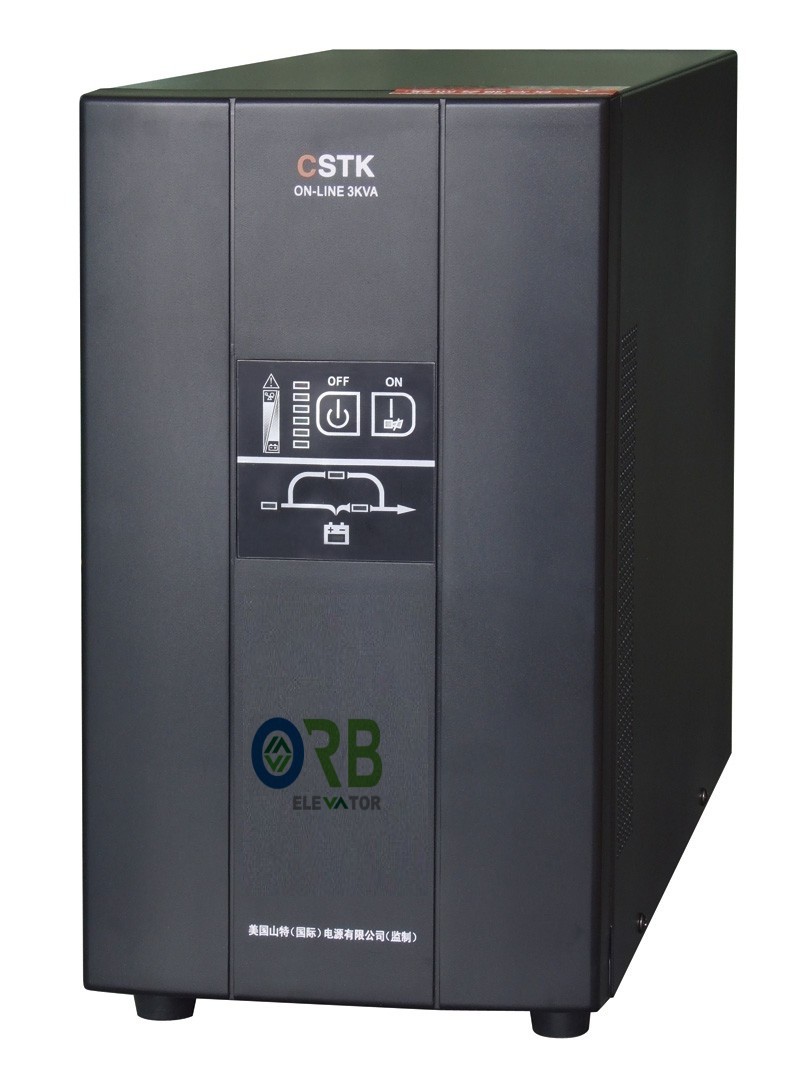

Elevator Automatic Rescue Device(UPS)

Product Abstract:

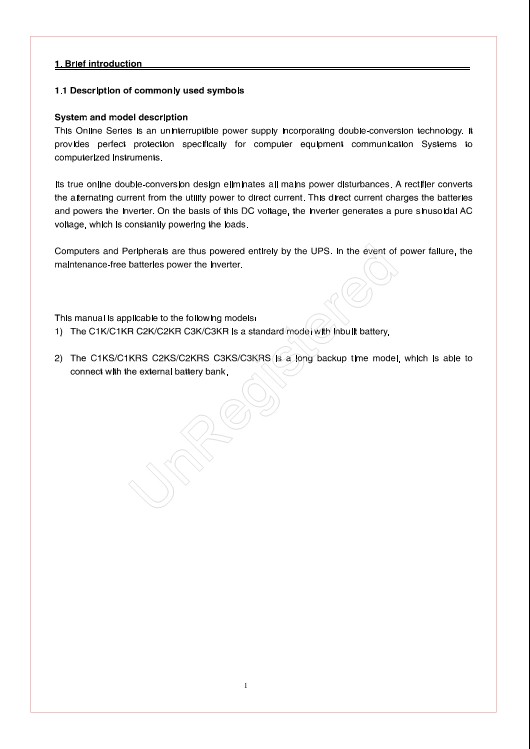

The C1K/C1KR, C2K/C2KR, C3K/C3KR is a standard model with inbuilt battery.

Product Description

More information, please contact us, orbeli_peter@163.com

We have been mainly supplying high quality elevator safety parts according to customer's request.

And welcome you to visit our website for its more technical specifications.

Model ARD-10 ARD-15 ARD-25 ARD-30 ARD-40 ARD-45 ARD-60

Capacity 7.5HP 8HP 15HP 20HP 24HP 34HP 45HP

(5.5KW) (6.3KW) (11KW) (15KW) (18KW) (25KW) (32KW)

AC Input

1-phase 220Vac / 110Vac, single phase input, 50/60Hz ± 10%

3-phase 415V / 220V A C + 15% - 20% , Three P ha se Input, 50/60H z ± 10%

D C Voltage 48V dc 60V dc 72V dc 84V dc 96V dc 120V dc 144V dc

Charger Type Controlled Rectifier CVCC

Charging Time 10 Hours for 90% o f Full Battery Capacity

Technology IG B T based PW M Sine Wave

Output 1-phase 220V a c (50H z ) / 110V a c (60H z )

Voltage 3-phase 400V / 415V / 200Vac Three Phase 50/60Hz ± 0.1Hz

Inverter Efficiency 85%

Inverter Overload 105% continuous

Harmonic Distortion <3% o n Linear load

Crest Factor 4:1

Power Factor 0.8

Phase Displacement 120° ± 1°

Dimension (WxHxD) 390 x 530 x 184 mm

LCD Display A C normal, Inverter normal, Batter low, Overload

Protection Output Overload & Short circuit, DC Under & Over Voltage

*Specifications are subject to change without prior notice.
