Car frame

Car frame, Cabin frame

Product Abstract:

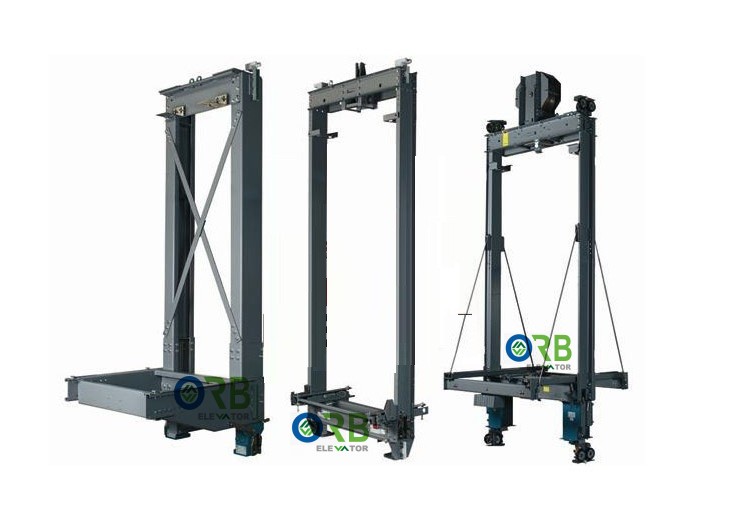

Car frame for elevator

Product Description: For Passenger Car Lifts

- For Traction Car Lifts with roping 1:1, 2:1

- For Hydraulic Car Lifts, with direct & indirect actions

- For different capacities of 320 kg to 4000 kg

- For different dimensions of DBG

- Easy installation

- Standard export package

ORB standard car frame includes several assemblies listed as below:

1. Cross Beam(1 PC),Upright(2 PCS)and Bottom Beam(1 PC)

2. Limit Switch Touching Plate (1 PC)

3. Car Side Pulling Rod (4 PCS)

4. Oil Can (2 PCS)

5. Guide Shoes (4 PCS)

6. Lifting Pulling Rod For Safety Gear (1 PC or 2 PCS)

7. Safety Gear (1 Pair)

8. Safety Gear Linkage (1 PC)

9. Safety Gear Switch (1 PC)

Besides, we also supply extra assemblies as below:

10.Suppoting Bracket

11. Load Weighing Device

12. Buffer Striking End

13. Suspension Device (rope suspension or pulley sheave)
