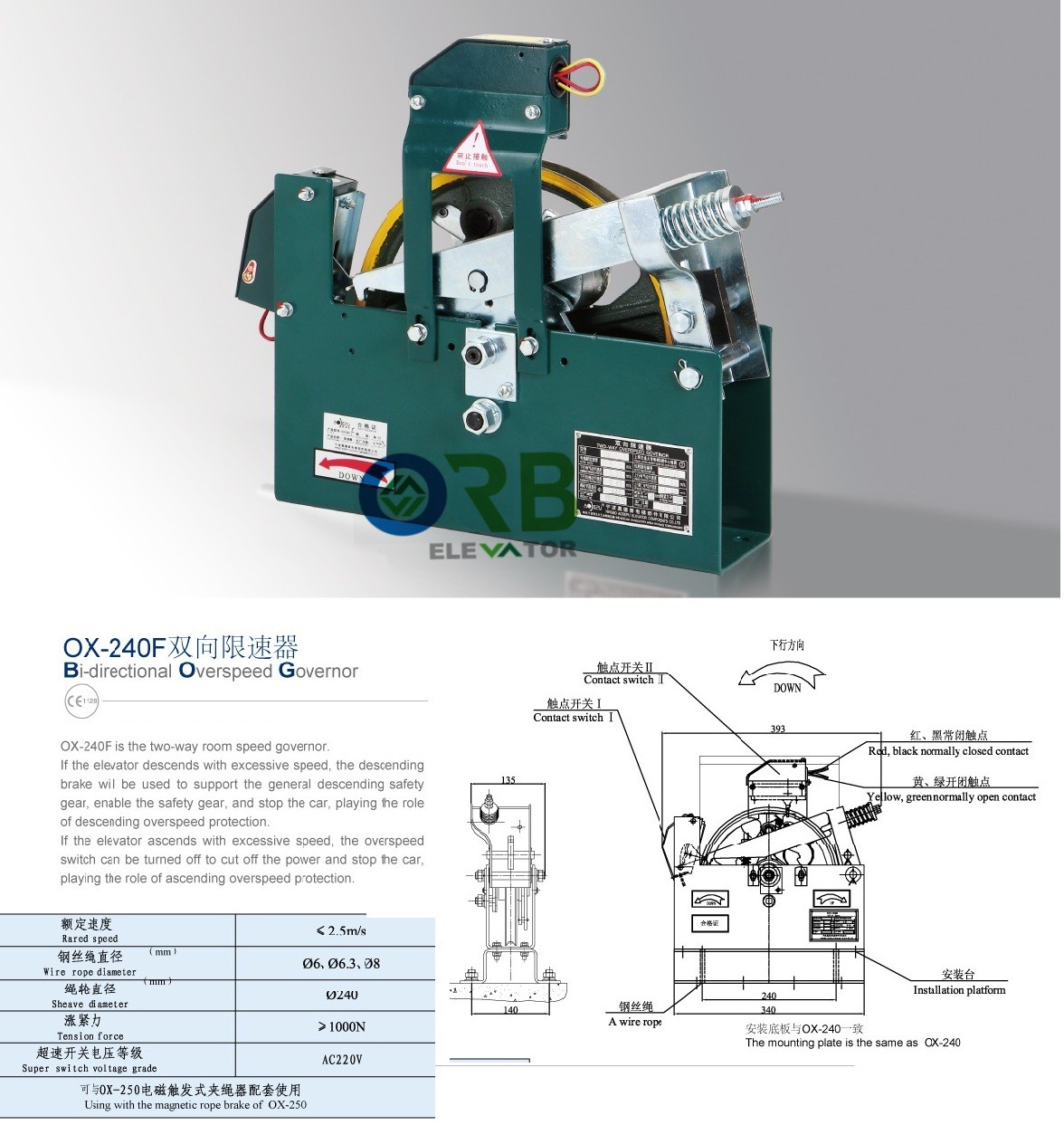

Bi-directional Over-speed Governor OX-240F

If the elevator descends with excessive speed, the descending brake will be used to support the general descending safety gear, enable the safety gear, stop the car, playing the role of descending over-speed protection.

If the elevator ascends with excessive speed, the over-speed switch can be turned off to cut off the power and stop the car, playing the role of ascending over-speed protection.

Rated speed:≤ 2.5m/s

Wire rope diameter(mm): Φ6,Φ6.3,Φ8

Sheave diameter(mm): Φ240

Tension force:≥1000N

Super switch voltage grade:AC220V

It can be used with magnetic rope brake of OX-250

More information, please contact us, orbeli_peter@163.com
